Product Details
Part Code:
BX2000
- Makes the most effective use of the latest cheap-rate tariff structures, electronically
- 1 hour or 2 hour boost
- Always gives priority to off-peak supply
- Automatically cancels any boost remaining, when the off-peak supply comes on
- Indicator lights show whether on-peak or off-peak power is being used
- Incorporates two double-pole switches: one for 24-hour supply, one for off-peak supply
- Accepts all incoming and outgoing wiring for single, dual or two separate 3 kW immersion heaters

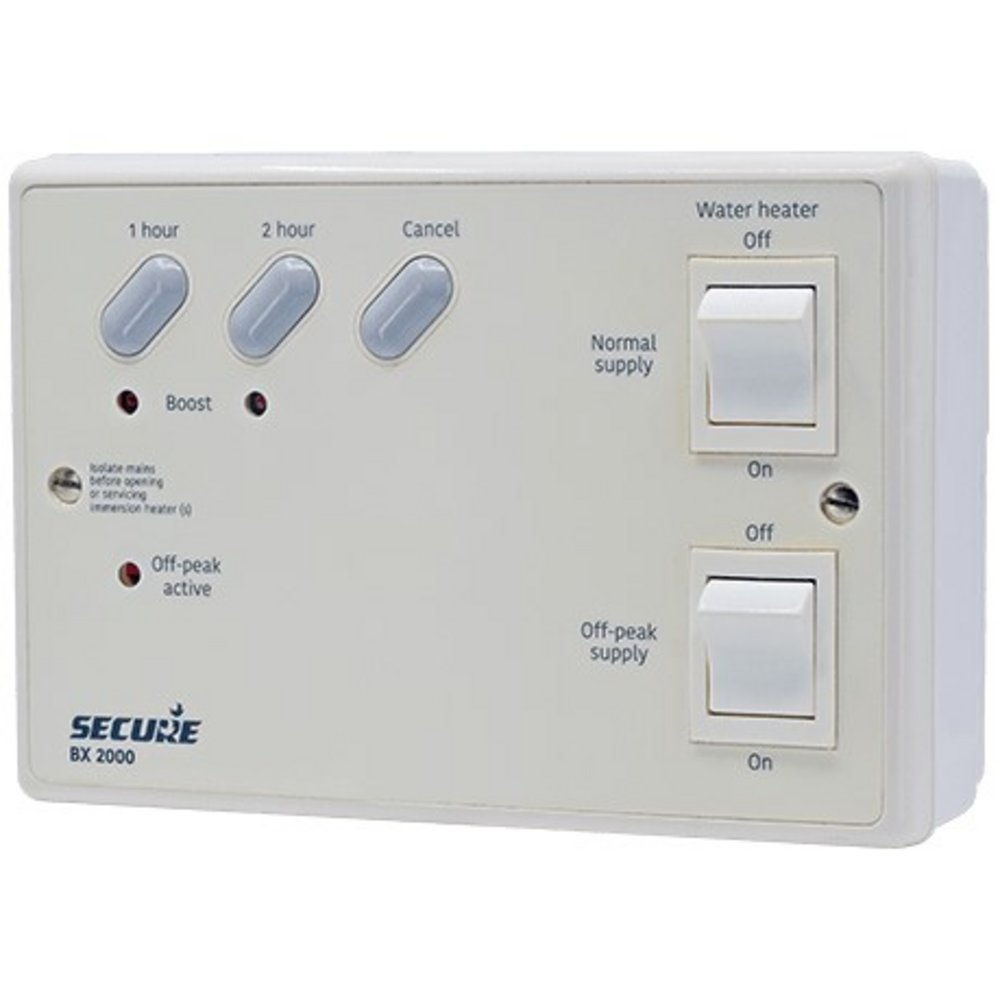

This simple boost control is intended for use with electric water heating systems where the immersion heater(s) are controlled by the Electricity Company’s Radio Teleswitch, Radio Telemeter or Tariff time switch. The BX2000 allows the user to 'top up' the hot water if extra supplies are needed during the day time with the main water heating taking place overnight using off peak electricity.
Downloads
Specifications
Depth | 62mm |
Display Type | Without Display |
EAN | 5015914087035 |
EClass Code | 22-10-75 |
Height | 115mm |
Manufacturer Part Code | BX2000 |
Timer Type | 60min, 120min |
Width | 170mm |
