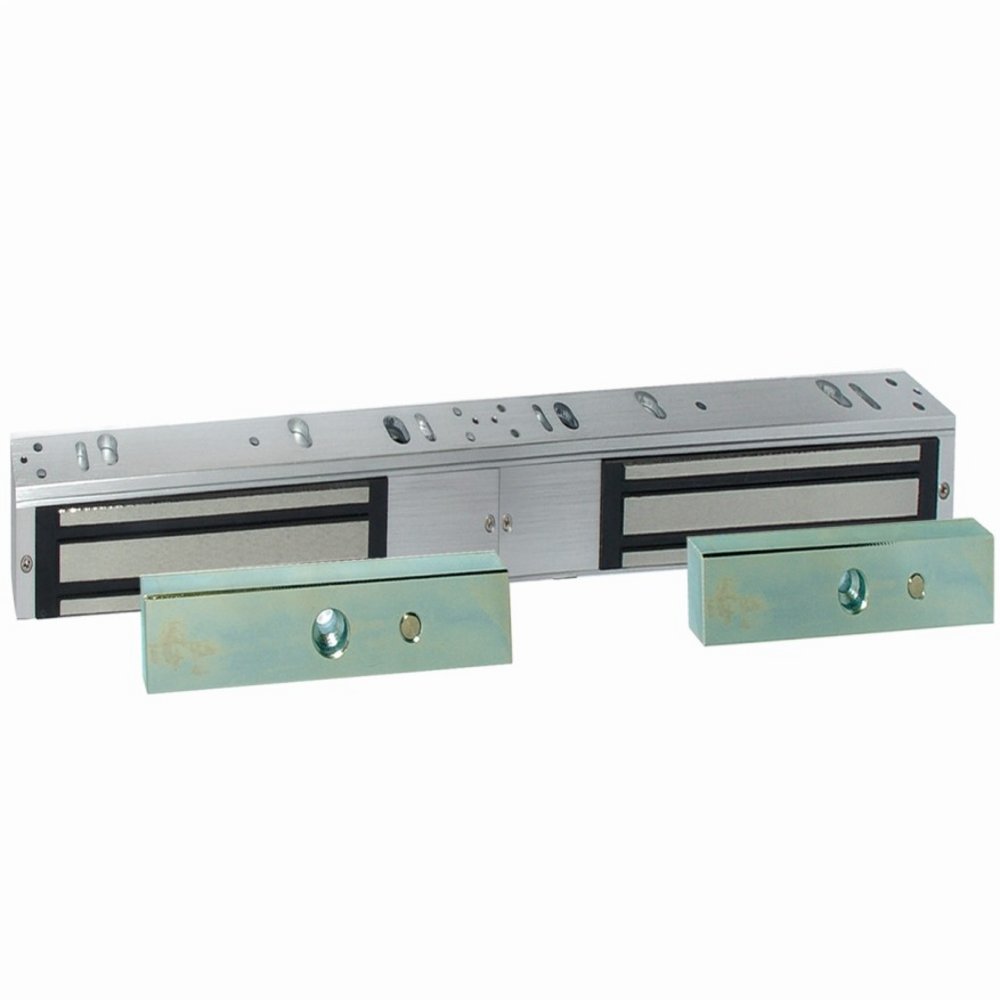

Standard Double Electro Magnetic Lock, 545kgf, Satin, Aluminium, Grade 3
Standard Double Electro Magnetic Lock, 545kgf, Satin, Aluminium, Grade 3
Part Code:
AEM10060
Stock Availability
Product Details
Part Code:
AEM10060
- CE Marked
- Unmonitored
- Low maintenance with no moving parts
- Safety bolts prevent the magnet from detaching from the bracket itself
- Kick off pin in the armature plate to overcome any residual magnetism when power to the magnet is turned off.
- Dual voltage 12V/24V DC (selectable on site)
- Suitable for double doors, inward or outward opening
- For medium to high usage traffic applications
- Nominal Holding Force up to - 1200lbf (5337N) (545kgf)
- Certified to TS010 - Grade 3
- Fire rated to EN1634-1 for 30min and 60min timber doors (when used with SINAEM2 intumescent sleeve)
Downloads
Specifications
| Holding Force | 5337N |
| Manufacturer Part Code | AEM10060 |
