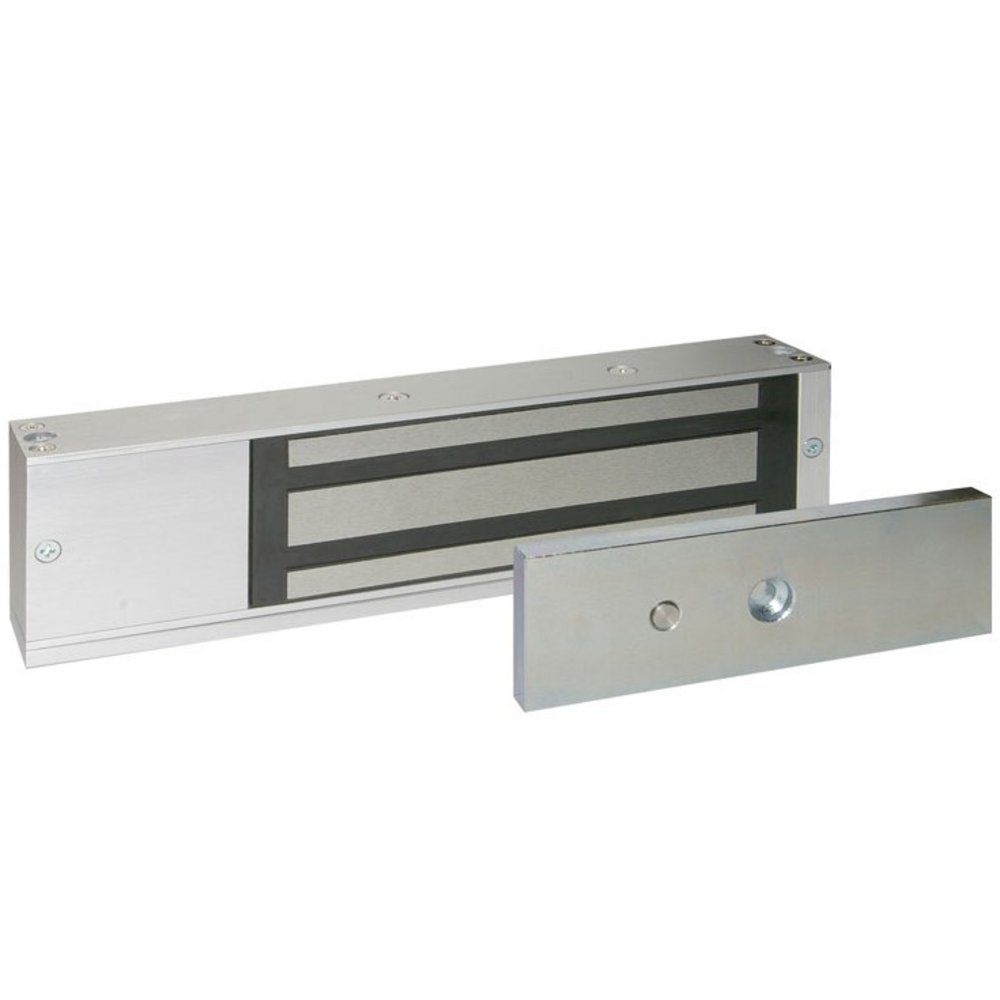

Slimline Electro Magnetic Lock, 272kgf, Satin, Aluminium, Grade 2
Slimline Electro Magnetic Lock, 272kgf, Satin, Aluminium, Grade 2
Part Code:
AEM10001
Stock Availability
Please contact your local store for details
Product Details
Part Code:
AEM10001
- CE Marked
- Unmonitored
- Low maintenance with no moving parts
- Safety bolts prevent the magnet from detaching from the bracket itself
- Kick off pin in the armature plate to overcome any residual magnetism when power to the magnet is turned off.
- Suitable for single or double doors, inward or outward opening
- For medium usage traffic applications
- Z & L Brackets available
- Nominal Holding Force up to - 600lbf (2660N) (272kgf)
- Certified to TS010 - Grade 2
- Fire rated to EN1634-1 for 30min and 60min timber doors (when used with SINAEM1 intumescent sleeve)
Downloads
Specifications
| Holding Force | 2660N |
| Manufacturer Part Code | AEM10001 |
