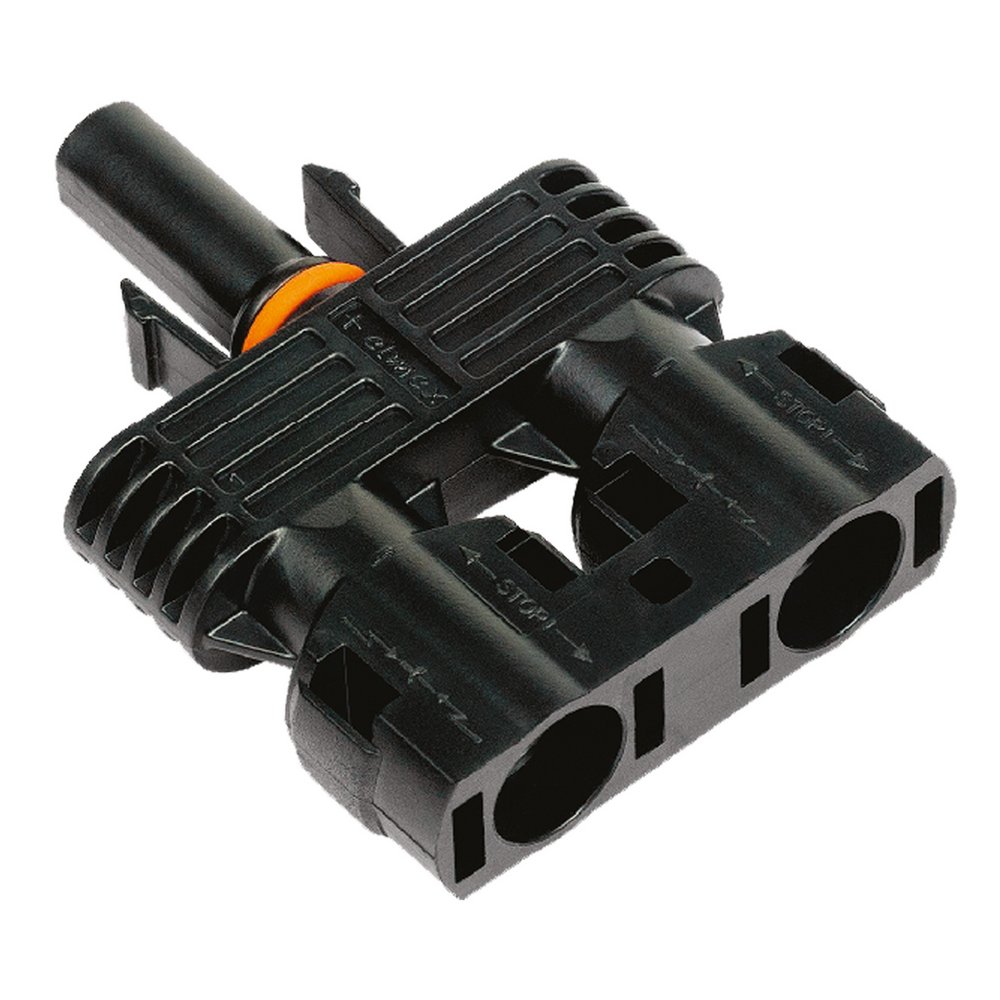

MC4 PV Solar Branch Connector with NEC Interlock, Male, 25A/30A, Up to 6mm², 1.5kV, Black, IP68
MC4 PV Solar Branch Connector with NEC Interlock, Male, 25A/30A, Up to 6mm², 1.5kV, Black, IP68
Part Code:
ERSBC4M
Stock Availability
Product Details
Part Code:
ERSBC4M
- TUV certified
- Snap fit locking arrangement
- Tested as per International Standards / IEC 62852
- Low contact resistance
- IP68 protection when mated
- Provides UV Protection (tested for 500hrs as per ISO 4892-2)
Specifications
| Colour | Black |
| EAN | 4055421031252 |
| Gender | Male |
| IP Rating | IP68 |
| Manufacturer Part Code | ERSBC4M |
| Rated Current | 30A |
| Rated Voltage | 1.5kV |
