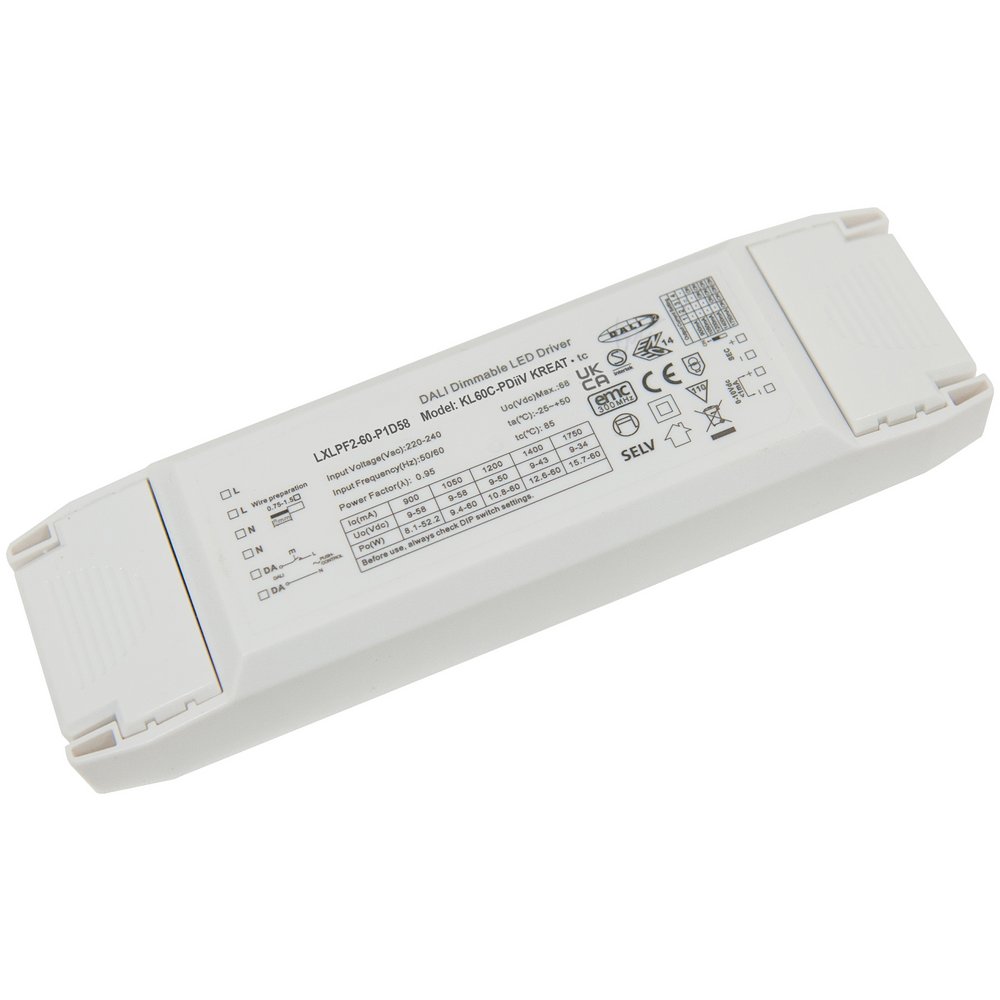

LED Multi Dimmable Driver, PUSH / DALI / 0-10V, 900mA - 1750mA, 9W - 60W, IP20, White
LED Multi Dimmable Driver, PUSH / DALI / 0-10V, 900mA - 1750mA, 9W - 60W, IP20, White
Part Code:
LXLPF2-60-P1D58
Stock Availability
Product Details
Part Code:
LXLPF2-60-P1D58
- PUSH control using retractive (non-latching) switch
- 0-10V control using rotary or slider potentiometer
- Built in DALI protocol
- Flicker free, ENEC Approved
- Standby power consumption ≤0.5W
- Short circuit, over-temperature and over-voltage protection
- Push-fit terminals, Wire diameter: 0.75 to 1.5mm²
- SELV isolation, Class II
- Rated life: 50,000 hours
Downloads
Specifications
| Accessory Type | Dimmable Driver |
| EAN | 4055423013881 |
| For Use With | Luxna Panels |
| Height | 30mm |
| IP Rating | IP20 |
| Length | 202mm |
| Manufacturer Part Code | LXLPF2-60-P1D58 |
| Width | 58mm |
