Hikmicro

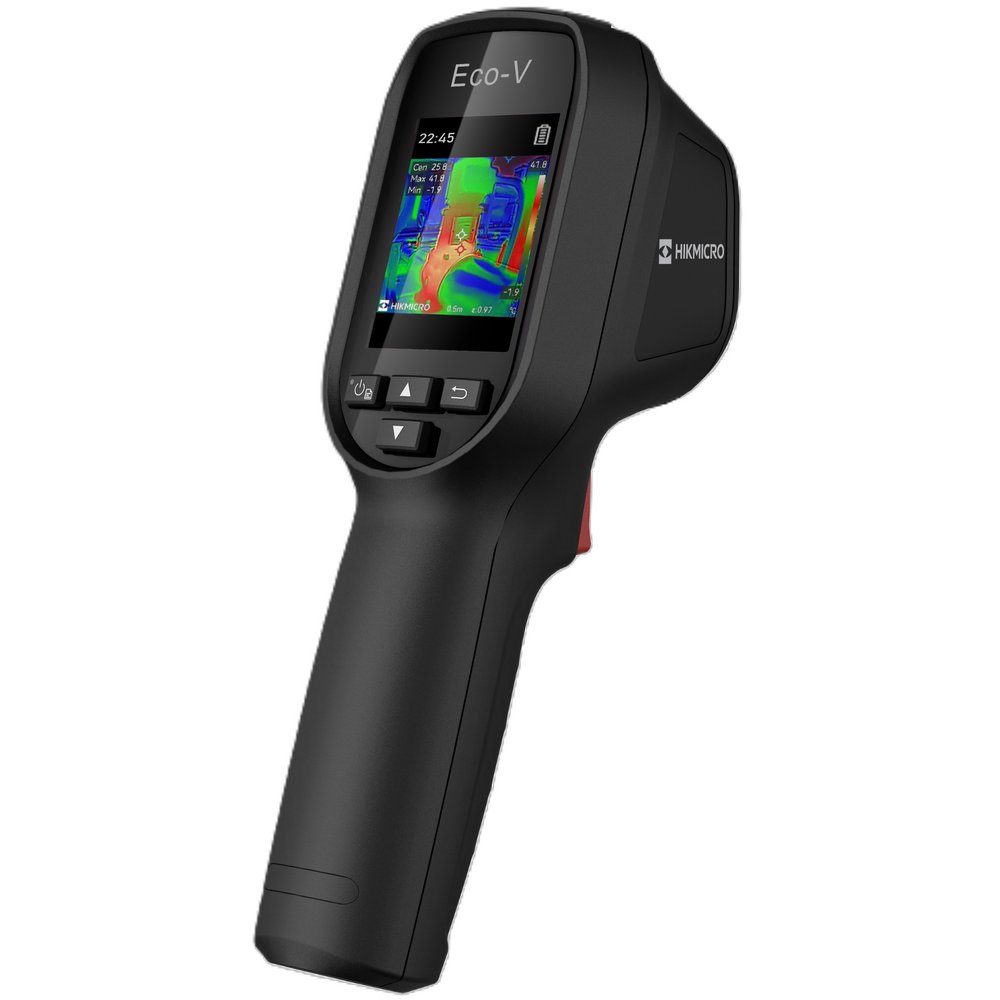

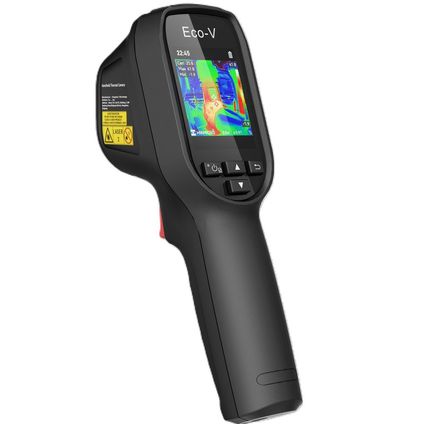

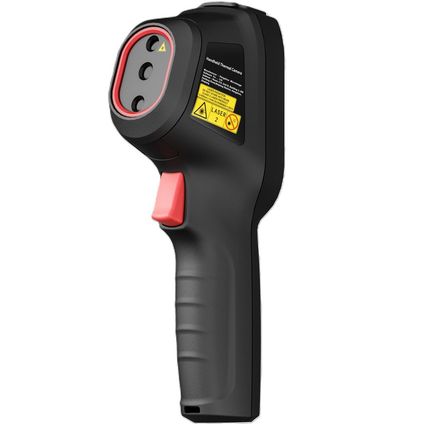

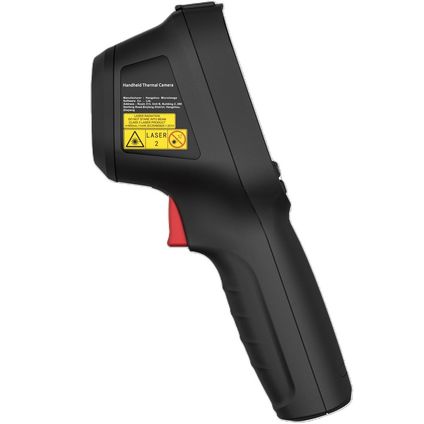

Handheld Thermal Camera, 2.4" LCD, 96 x 96, -20°C to 550°C, IP54, Eco-V Series

Hikmicro

Handheld Thermal Camera, 2.4" LCD, 96 x 96, -20°C to 550°C, IP54, Eco-V Series

Part Code: HM-TP30-1AQF-ECO-V

Stock Availability
Product Details
Part Code: HM-TP30-1AQF-ECO-V
  • Thermal resolution: 96 x 96 (9,216 pixels)
  • 112:1 Distance to spot ratio (D:S)
  • SuperIR: 240 × 240 (57,600 pixels)
  • NETD: <50mK (@ 25°C, F# = 1.0)
  • Measurement presets: center spot, hot spot, cold spot, off
  • 25Hz image frequency
  • Laser pointer
  • Built-in 4 GB flash memory: 30,000 pictures
  • Up to 8 hours continuous running
  • Thermal/Visual/Fusion

The handheld thermal camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.

Specifications
Depth 117mm
Height 196mm
IP Rating IP54
Manufacturer Part Code HM-TP30-1AQF-ECO-V
Width 59mm
