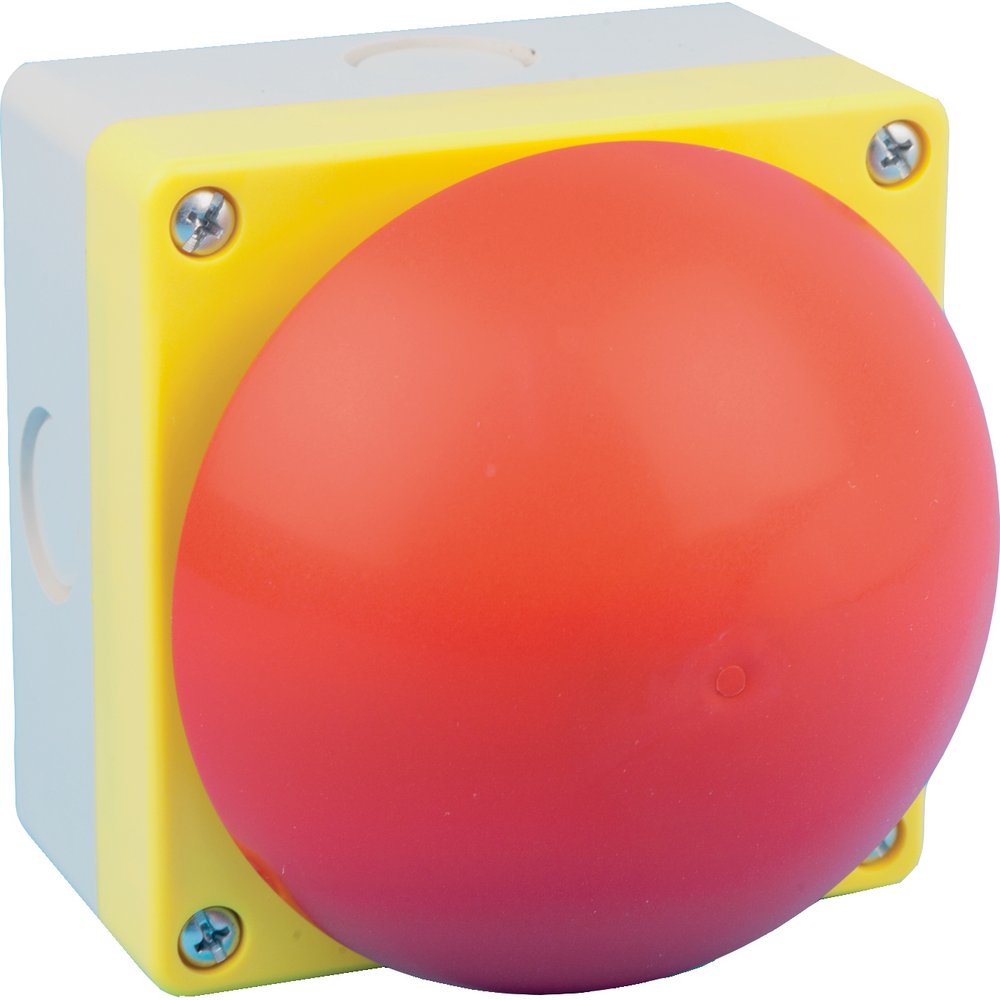

Emergency Red Mushroom Switch, 2NC, Pull To Release, IP65
Emergency Red Mushroom Switch, 2NC, Pull To Release, IP65
Part Code:
ERSSA091-02
Stock Availability
Product Details
Part Code:
ERSSA091-02
- Emergency maintained (pull to release) foot and palm switch
- Conforms to IEC 947
- Dimensions: diameter 90mm, height 101mm
- Switches conform to: IEC 947-5-1 (International) and EN 60947-5-1 (European) Standards
- Operational temperature: -25°C to 70°C
- Mechanical durability: 300,000 operations
- Protection against electrical shocks (to IEC 536): Class II
- Degree of protection (to IEC 529 & EN 60529): IP65
- Rated insulation voltage to IEC 947-1 & EN 60947-1: 660V
- Connecting terminals: screw with clamp plate for permanent fixing
Specifications
| Contact Configuration | 2NC |
| EAN | 4055421023066 |
| EClass Code | 27-07 |
| IP Rating | IP65 |
| Manufacturer Part Code | ERSSA091-02 |
