BG Electrical Accessories

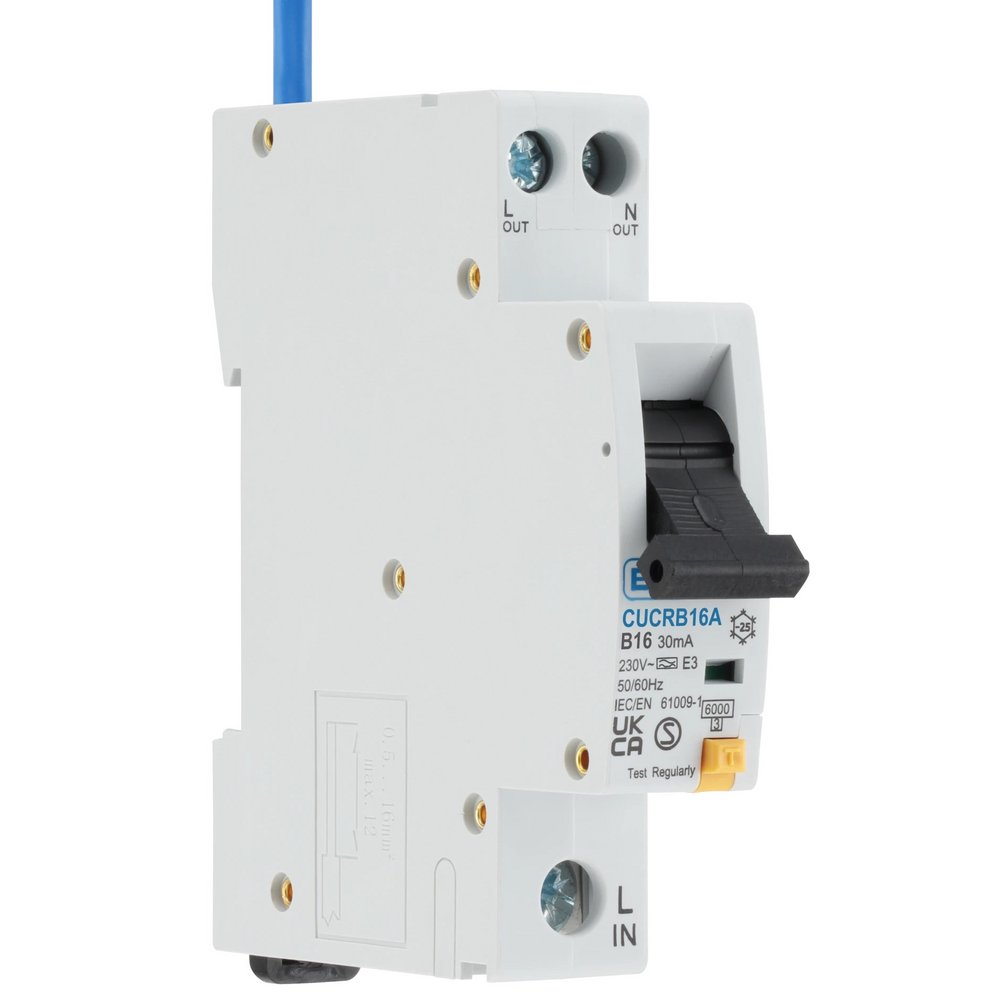

16A RCBO, 1 Pole + Neutral, 1m Lead, Curve B, Type A, 30mA, 6kA

BG Electrical Accessories

16A RCBO, 1 Pole + Neutral, 1m Lead, Curve B, Type A, 30mA, 6kA

Part Code: CUCRB16A-01

Stock Availability
Product Details
Part Code: CUCRB16A-01
  • Type A with > 6mA pulsed DC detection
  • 30mA
  • Single module
  • B curve
  • 6kA breaking capacity
  • Compact size
  • Positive contact status indicator
  • Capable of being locked in the off/on positions using a device lock

This RCBO provides superior protection for both people and circuits in a single module device. The compact designclips to a standard 35mm DIN rail but the compact body makes it easier to install the BG Fortress Consumer Unit alongside other devices such as MCBs and RCDs, saving space and making wiring easier.

Downloads
Specifications
Breaking Capacity 6kA
Current Rating 16A
Curve Type Type B
Manufacturer Part Code CUCRB16A-01
Mounting Type DIN Rail
Number of Poles 1 Pole + Neutral
Rated Voltage 230V
