16 Zone Addressable Fire Panel, XP95 / Discovery Protocol

• Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB)
• Compatibility with Apollo’s XP95/Discovery protocol
• Two independently programmable conventional sounder circuits
• Two programmable inputs
• A fault output relay and three programmable relay outputs with voltage free changeover contacts
• A selection of zone dependency/coincidence functions
• A day/night (building occupied/unoccupied) function
• An investigation delay period function
• Combined keypad / keyswitch entry to Access Levels 2 and 3
• Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel

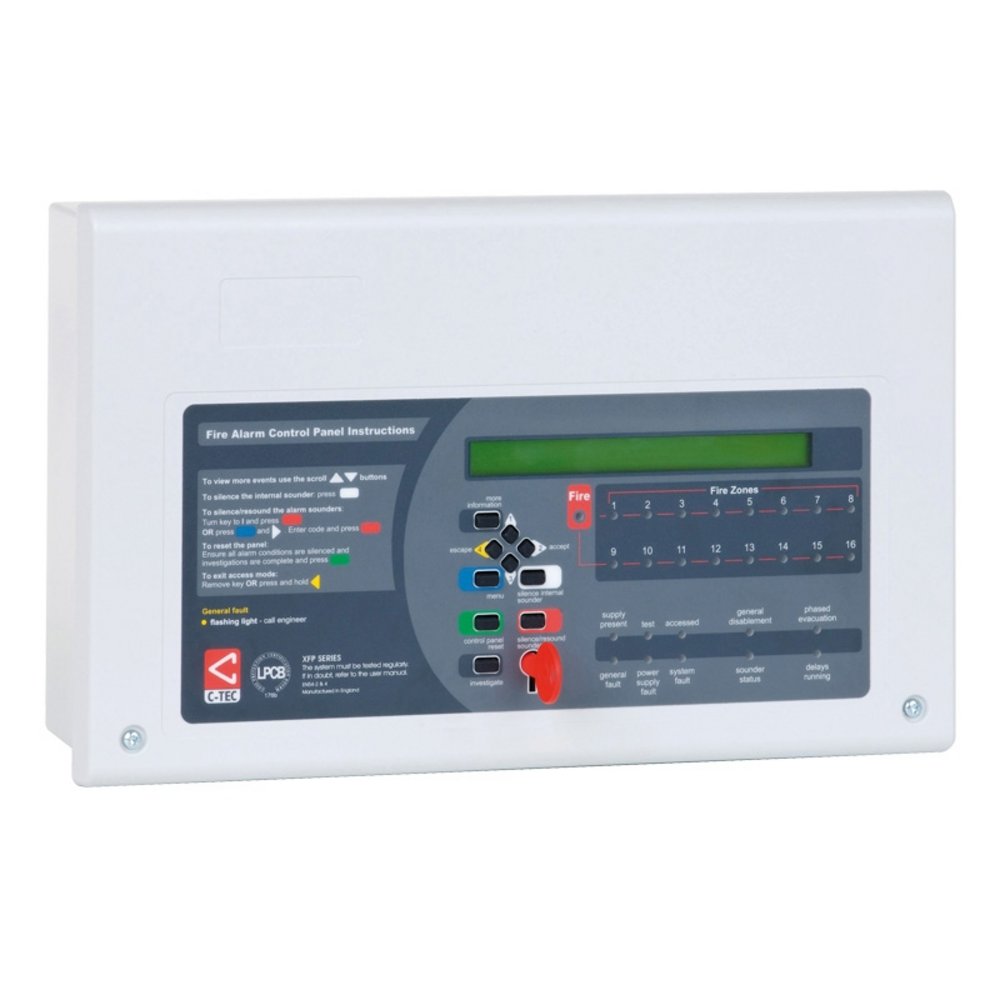

C-TEC’s XFP single loop 16 zone addressable fire alarm panel offers high performance at a very competitive price.

LPCB certified to EN54 parts 2 & 4, it is supplied in an attractive flush or surface mountable plastic enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Apollo's XP95/Discovery protocol.

Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling entry-level addressable fire panels.

Packed full of engineering features - some of which are not available on more expensive alternatives (see feature list below) - the XFP501E/X is also fully compatible with C-TEC’s Hush Button fire alarm solution and its new range of EN54 certified addressable sounders and VADs.
