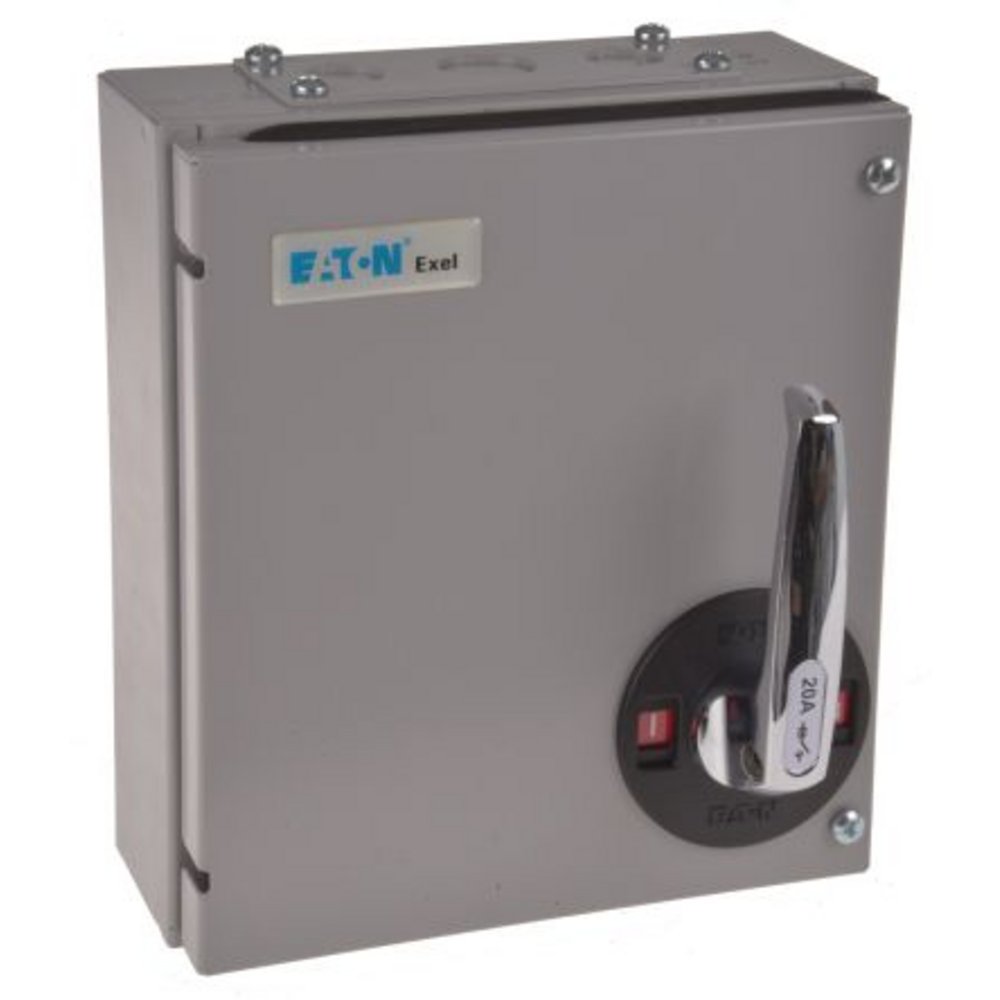

20A TP+N Exel 2 Fused Switch Disconnector
20A TP+N Exel 2 Fused Switch Disconnector
Part Code:
15KXTNC2F
Stock Availability
Please contact your local store for details
Product Details
Part Code:
15KXTNC2F

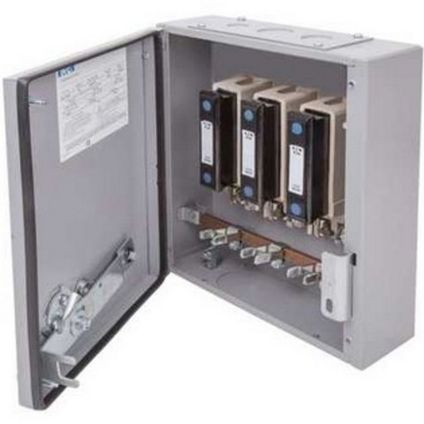

- Units have removable moving contact assemblies to facilitate wiring
- Fabricated from rust-protected sheet steel
- Removable blank top and bottom end plates (except for 20A and 32A top end plates which incorporate knockouts) and gasket doors give IP41 protection
- Chromium-plated front operated handles, with "ON (I) OFF (O)" indication, and internal fixing enabling units to be mounted closely side by side
- Interiors comprise porcelain bases fitted with non-ferrous conducting components
Specifications
| Current Rating | 20A |
| EClass Code | 27-07 |
| Manufacturer Part Code | 15KXTNC2F |
| Number of Poles | 3 Pole |
| UNSPSC Code | 41111716 |
| Voltage Supply | 415V |
