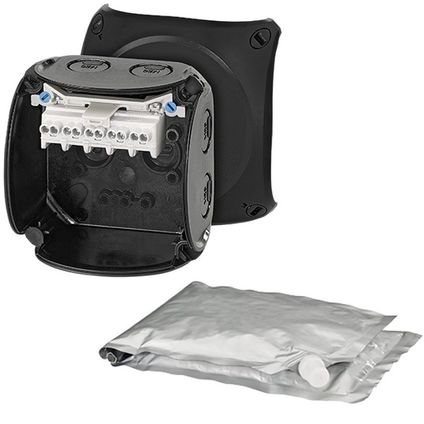

Weatherproof Junction Box with Sealing Compound, 0.75mm²-2.5mm², 93mm x 93mm x 62mm, Polycarbonate, Black, IP68
Weatherproof Junction Box with Sealing Compound, 0.75mm²-2.5mm², 93mm x 93mm x 62mm, Polycarbonate, Black, IP68
Part Code:
WP0202B
Stock Availability
Product Details
Part Code:
WP0202B
- 0.75mm²-2.5mm²
- With terminals
- Cable entries via knockouts
- Cable junction box for encapsulating
- Ground installation without live loads or in risk of condensation formation and ingress of liquids
- Usable for heating cable / heating tape up to max. 70°C surface temperature
- Sealing compound and sealing plug
- In case of re-installation or testing the sealing compound can be removed easily
- Durability of sealing compound to processing ≥ 12 months at a storage temperature of 5°C-50°C
- External brackets for wall fixing included
Downloads
Specifications
| Colour | Black |
| Current Rating | 20A |
| Depth | 62mm |
| EAN | 4012591123521 |
| Height | 93mm |
| IP Rating | IP66 |
| Manufacturer Part Code | WP0202B |
| Width | 93mm |
