Hensel

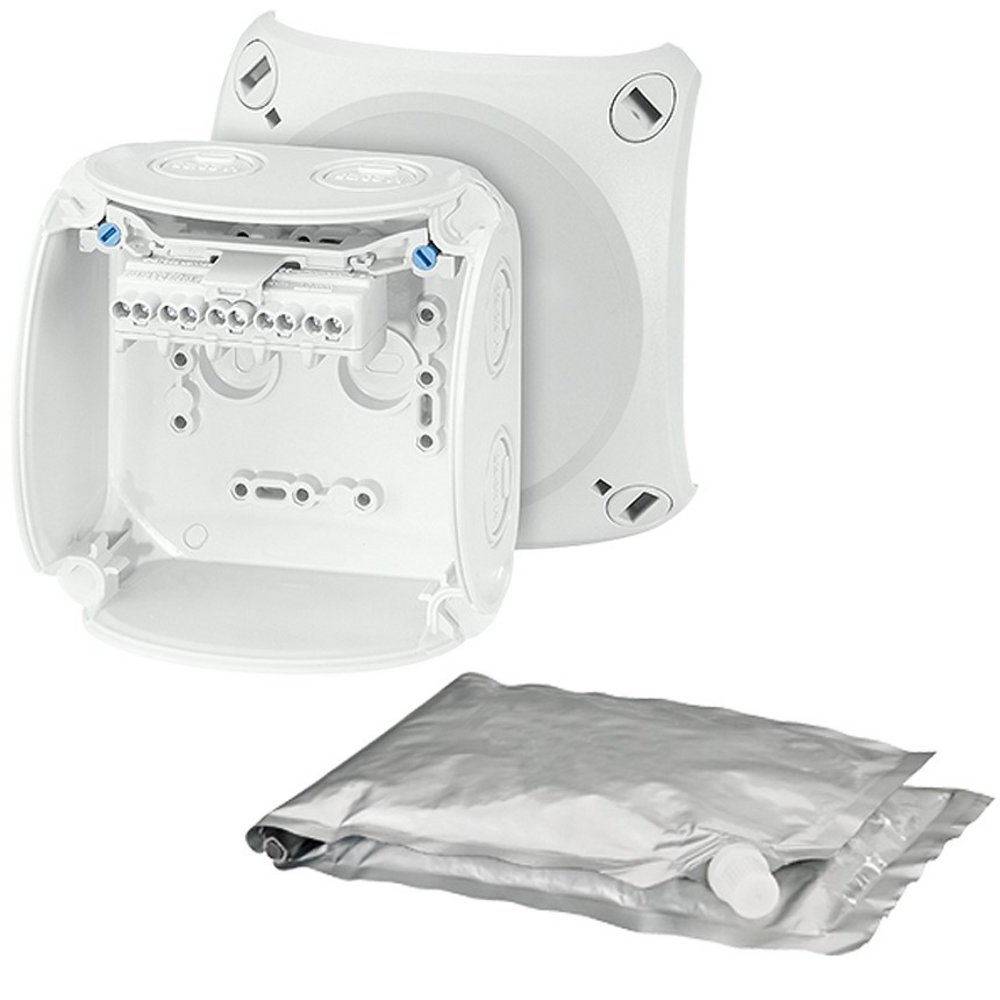

Weatherproof Junction Box with Sealing Compound, 0.75mm²-2.5mm², 104mm x 104mm x 70mm, Polycarbonate, Grey, IP68

Hensel

Weatherproof Junction Box with Sealing Compound, 0.75mm²-2.5mm², 104mm x 104mm x 70mm, Polycarbonate, Grey, IP68

Part Code: WP0402G

Stock Availability
Product Details
Part Code: WP0402G
  • 0.75mm²-2.5mm²
  • With terminals
  • Cable entries via knockouts
  • Cable junction box for encapsulating
  • Ground installation without live loads or in risk of condensation formation and ingress of liquids
  • Usable for heating cable / heating tape up to max. 70°C surface temperature
  • Sealing compound and sealing plug
  • In case of re-installation or testing the sealing compound can be removed easily
  • Durability of sealing compound to processing ≥ 12 months at a storage temperature of 5°C-50°C
  • External brackets for wall fixing included
Downloads
Specifications
Colour Grey
Current Rating 20A
Depth 70mm
EAN 4012591123538
Height 104mm
IP Rating IP68
Manufacturer Part Code WP0402G
Width 104mm
