Timeguard

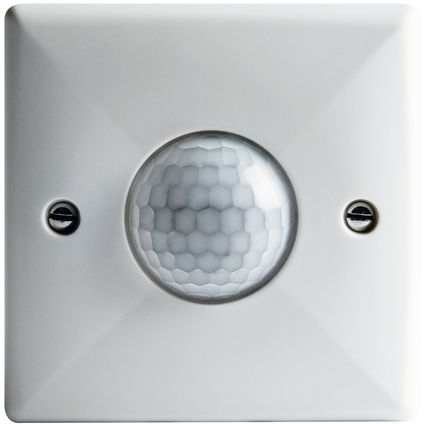

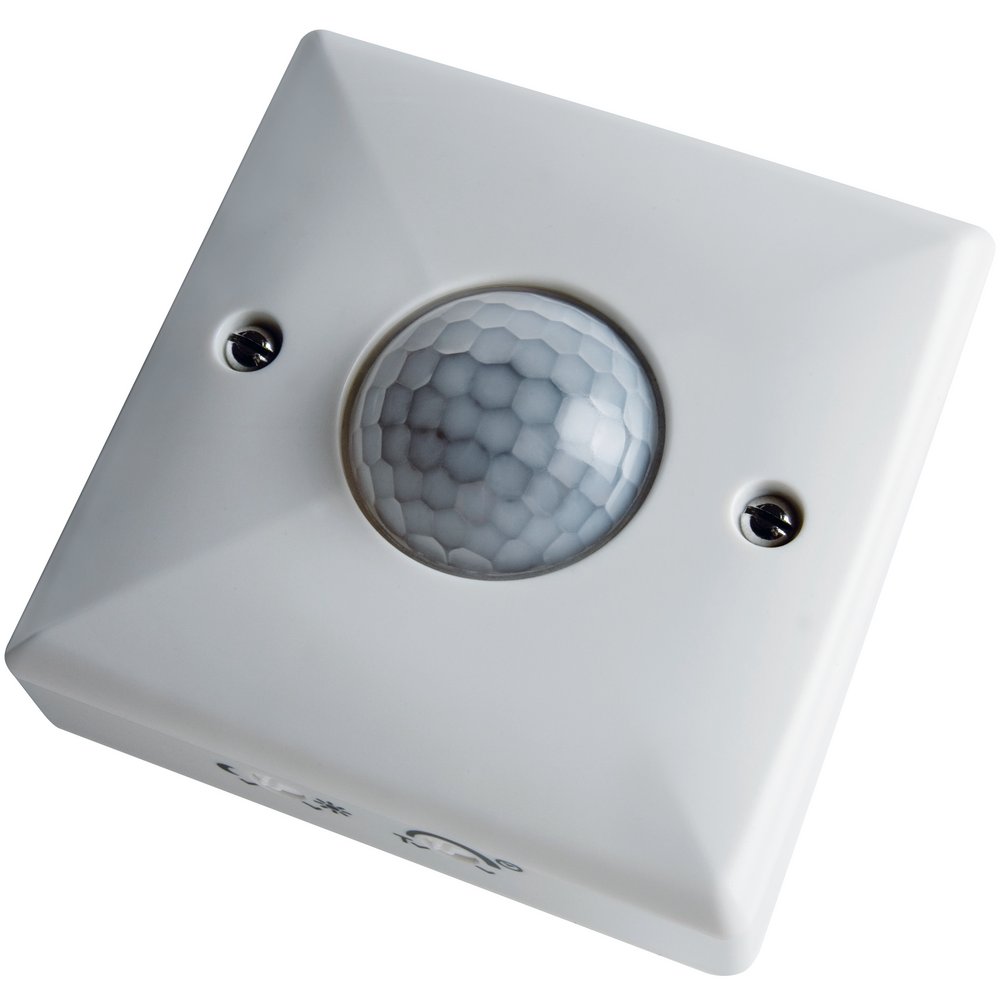

Wall Mount PIR Presence Detector, 120°, 10m, IP55, White

Timeguard

Wall Mount PIR Presence Detector, 120°, 10m, IP55, White

Part Code: PDWM1500

Stock Availability
Please contact your local store for details
Product Details
Part Code: PDWM1500
  • Switches lights ON when presence is detected and to light level (LUX) settings
  • Ideal for energy saving installations in the workplace, corridors, offices, toilets etc
  • Up to 1500W loading (6A) for incandescent, halogen, fluorescent and inductive lighting or 250W (1A) fan
  • Units can be wired in parallel (not exceeding total load)
  • Enhanced 120° detection zone for optimum coverage
  • Up to 10m detection range for motion and 5m for presence detection at 1.8m mounting height

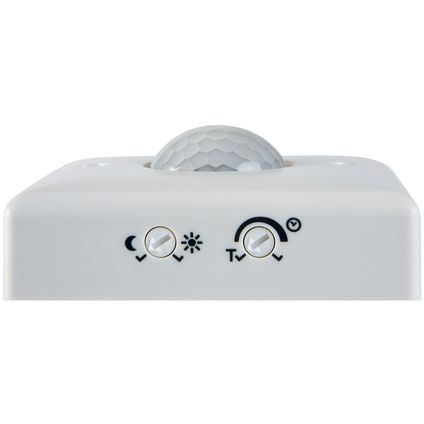

  • User-friendly adjustment for:
 Light level – 5 to 1000 LUX
 Time ON – 1 to 30 minutes
  • IP55 environmental rating (internal use only)
  • For surface mounting on a standard BS surface mount or flush mount box (min 16mm depth)
  • Up to 420W LED (Max) lighting

Timeguard take PIR Presence Detection to the next level for optimum coverage and with up to 1500W loading and 10m detection range this powerful unit is the ideal choice for all energy saving installations.

Specifications
Colour White
Depth 50mm
Height 86mm
IP Rating IP55
Manufacturer Part Code PDWM1500
Width 86mm
