Hikmicro

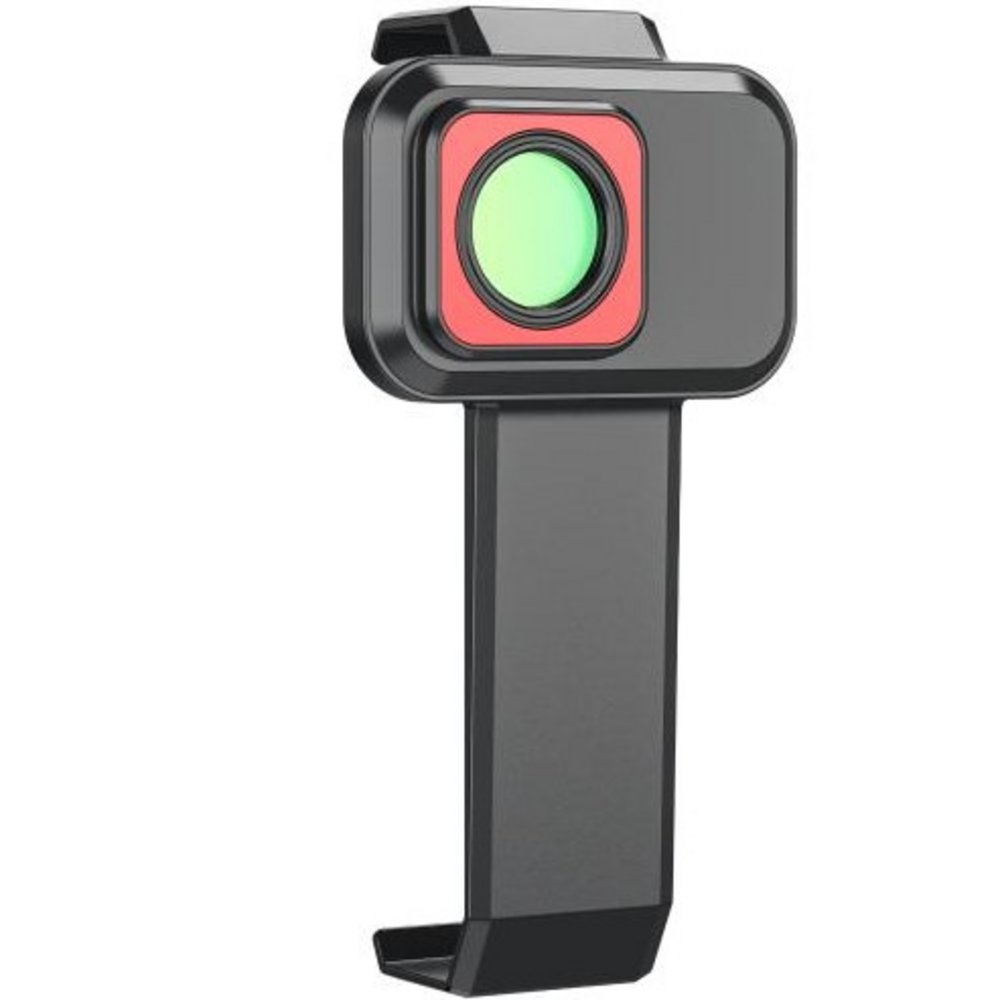

Thermography Camera Macro Lens, -20°C to 150°C, Pocket Series

Hikmicro

Thermography Camera Macro Lens, -20°C to 150°C, Pocket Series

Part Code: HM-P201-MACRO

Stock Availability
Product Details
Part Code: HM-P201-MACRO
  • High Accuracy: Max(±3°C/5.4°F, ±3%), for object temperature between 0°C (32°F) to 150°C (302°F)
  • See Smaller: Small details are clearly visible, imaging the target as small as 100μm x 100μm
  • Easy installation: Easy to attach the macro lens to compatible cameras
  • No Calibration Required: Ready to use once installed, saves the hassle of sending the camera to the manufacturer to calibrate the lens

The macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components. Easily clips onto Pocket-series thermal imaging cameras. This macro lens is compatible with the Pocket series (Pocket1, Pocket2) thermography cameras.

Downloads
Specifications
Depth 25.16mm
Height 87.2mm
Manufacturer Part Code HM-P201-MACRO
Width 44.2mm
