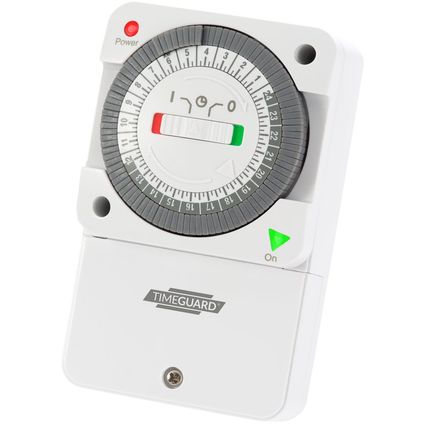

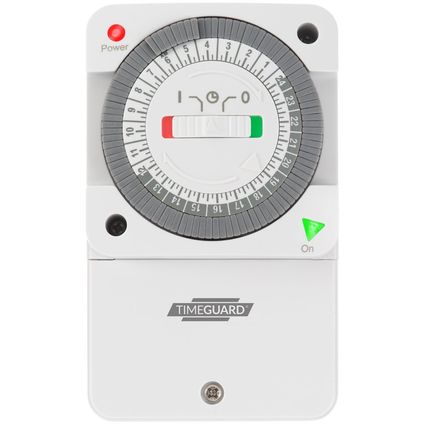

Slimline General Purpose Timeswitch, 24 Hour, 16A, White
Slimline General Purpose Timeswitch, 24 Hour, 16A, White
Part Code:
NTT05
Stock Availability
Product Details
Part Code:
NTT05
- 16(8)A load rating
- 96 quick-set segments for up to 48 ON/48 OFF programmes
- Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl’s) (Not suitable for discharge lighting)
- Red LED 'Mains ON' and green LED 'Output' indicators for easy viewing
- Special 'Traffic Light' slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication
- Switches ON and OFF at preset times
- Easy to use captive segment dial
- Permanent ON/OFF control
- Voltage free contacts
Downloads
Specifications
| Depth | 47mm |
| Display Type | Without Display |
| Height | 120mm |
| Manufacturer Part Code | NTT05 |
| Programmer Type | 24 hour |
| Width | 74mm |
