Product Details
Part Code:
EMBH145M
- Maintained & Non-Maintained.
- Manual Test or Self Test versions available.
- Long Life LiFePO4 batteries.
- Varied mounting options.
- Rugged PC lens.
- Viewing Distance 18m.
- Pictogram according to ISO 3864-1

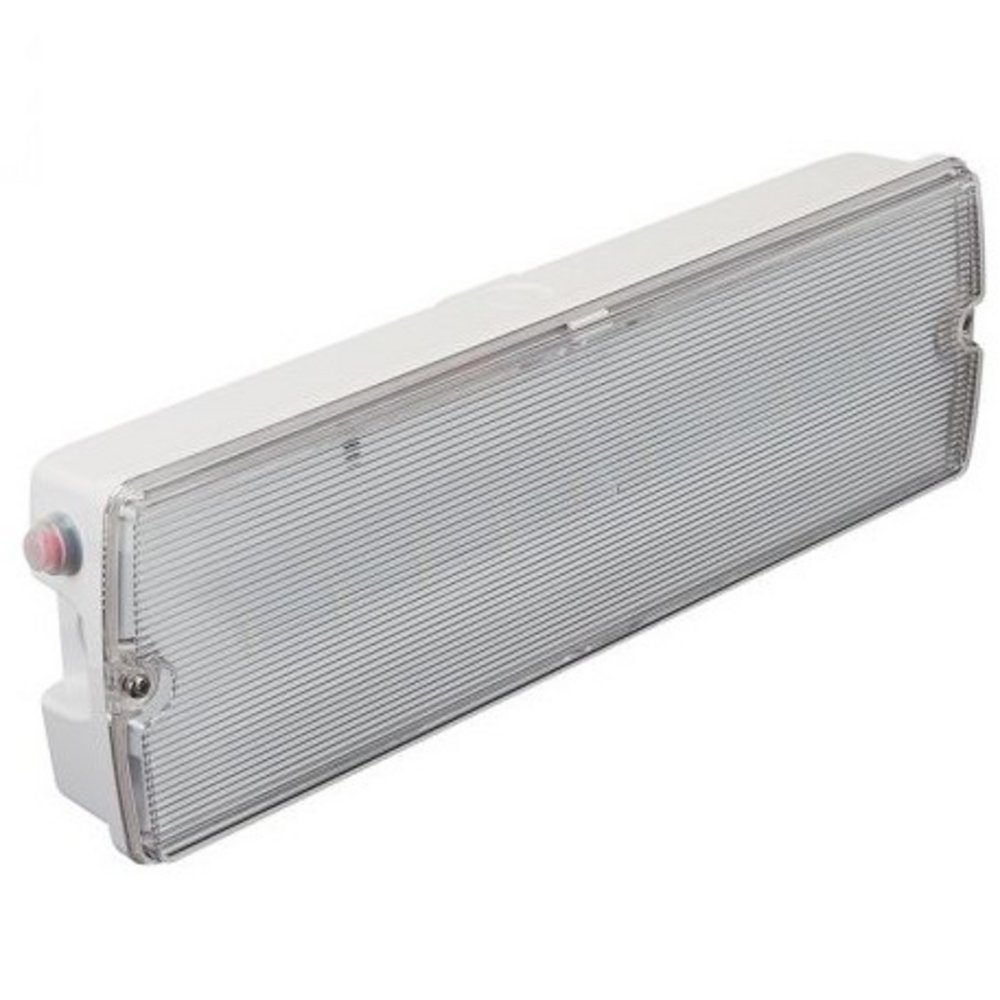

Collingwood's range of emergency bulkheads contain the very latest LED and battery technology to ensure a modern solution with long lifetimes and high performance. A choice of manual and self test options are available to suit your requirements, as well as being maintained and non maintained. The bulkheads are suitable for use in open areas and escape routes, for general illumination or as an exit sign, with an 18m viewing distance. The robust design includes a PC housing and lens, IP65 and IK08 ratings. A range of mounting options are available with 3x M20 knock outs and BESA box fixing points.
Downloads
Specifications
Depth | 56mm |
EAN | 5055351547761 |
Height | 110mm |
IP Rating | IP65 |
Lumens | 145lm |
Manufacturer Part Code | EMBH145M |
Wattage | 3W |
