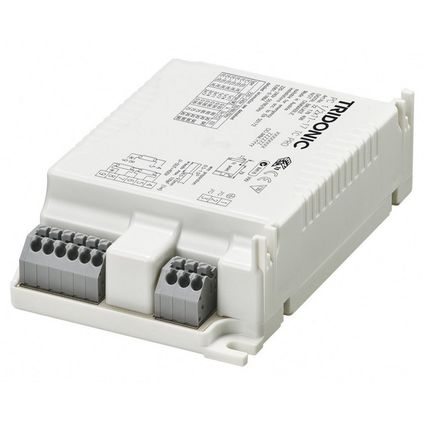

2 x 26W - 46W PC TC (PL) Pro High Frequency Ballast
2 x 26W - 46W PC TC (PL) Pro High Frequency Ballast
Part Code:
22176410
Stock Availability
Please contact your local store for details
Product Details
Part Code:
22176410
- CELMA Energy Efficiency Index A2 BAT / A2
- Nominal life-time up to 100,000h (at ta 50°C with a failure rate ≤ 0.2% per 1,000h)
- Large temperature range
- Devices can operate 2 lamps
- Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
- Constant luminous flux irrespective of fluctuations in mains voltage
- For luminaires of protection class I and protection class II
- Automatic start after replacement of defective lamps
- Safety shutdown of defective lamps and at end of lamp life (EOL 2)
Downloads
Specifications
| EAN | 9006210345772 |
| EClass Code | 27-11 |
| Height | 31mm |
| Lamp Type | TC-DEL, TC-F, TC-L, TC-TEL, T5c |
| Length | 123mm |
| Manufacturer Part Code | 22176410 |
| UNSPSC Code | 41111716 |
| Wattage | 18W, 22W, 24W, 26W, 32W, 40W, 42W |
| Width | 79mm |
