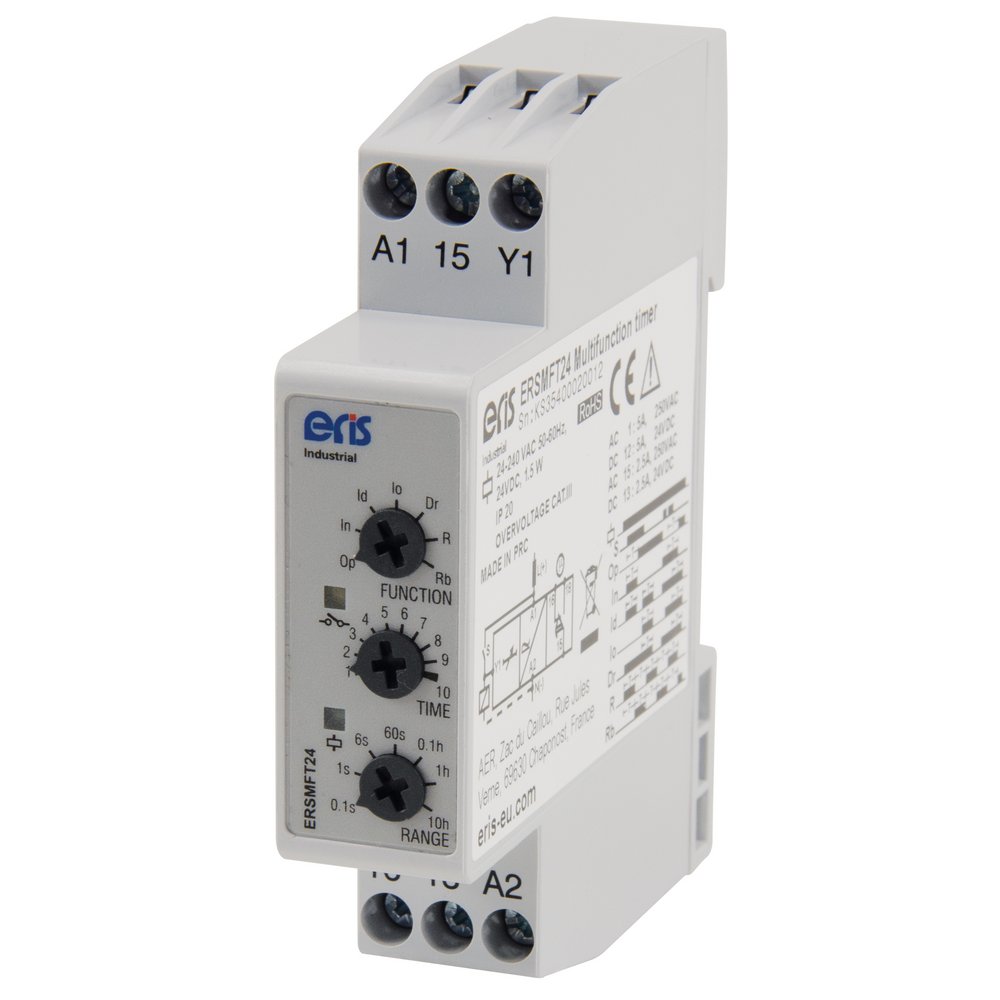

DIN Rail Multifunction Timer Relay, 0.1s to 100h, 24VDC/24V-240VAC
DIN Rail Multifunction Timer Relay, 0.1s to 100h, 24VDC/24V-240VAC
Part Code:
ERSMFT24
Stock Availability
Product Details
Part Code:
ERSMFT24
- Time range: 0.1s - 100 hours
- Supply voltage: 24V DC, 24V - 240V AC
- Current maximum: 5A
- Contact configuration: SPDT
- Mode of operation: Delay on, delay on release, double interval, interval, interval on, trigger open, symmetrical recycler off, symmetrical recycler on
Downloads
Specifications
| Contact Configuration | SPDT |
| Current Rating | 5A |
| Delay Time | 0.1 Second - 100 Hours |
| EAN | 4055421024292 |
| EClass Code | 27-07 |
| Manufacturer Part Code | ERSMFT24 |
| Mounting Type | DIN Rail |
| Voltage Supply | 240V |
