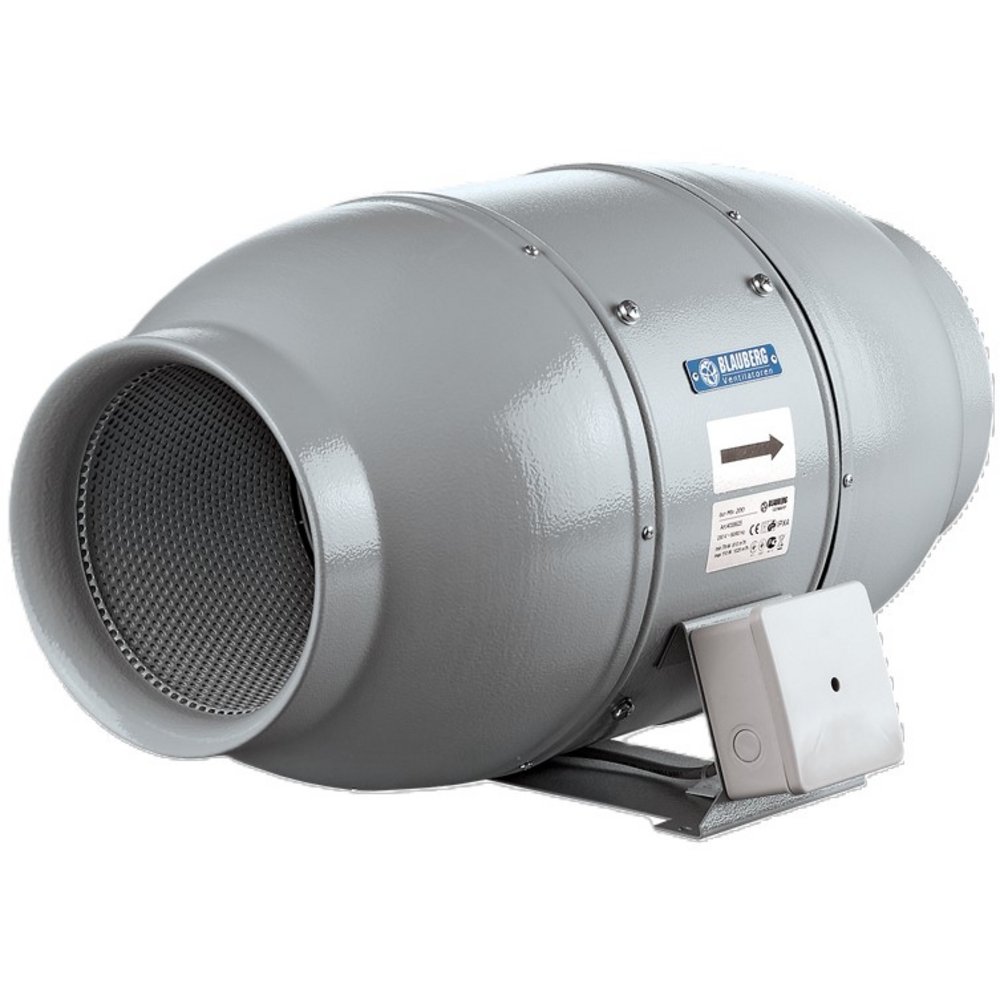

Inline Mixed Flow Extractor Fan, 200mm, 1035m³/h, IPX4
Inline Mixed Flow Extractor Fan, 200mm, 1035m³/h, IPX4
Part Code:
OSEF-ACF200
Stock Availability
Product Details
Part Code:
OSEF-ACF200
- Powerful, high performance acoustically lined in-line mixed flow extractor fan
- Can be used for supply and extract ventilation
- 200mm 8” dia connections suitable for both solid and flexible ductwork
- Lined with noise absorbing insulation material
- Casing is made of high-quality polymer coated steel
- Airflow upto 287l/s (1035m³/h), with an SFP down to 0.38w/l/s
- Meets Part L and F of the UK Building Regulations
- Noise level down to 31dB(A) at 3m distance from the fan
- Two-speed motor allowing for high/low (trickle/boost) speeds
- Fitted with an 110W German long life, low energy motor, backed with a 5 year warranty
Downloads
Specifications
| Depth | 550mm |
| EAN | 4055426005272 |
| Extraction Rate | 1035m³/hr |
| Height | 295mm |
| IP Rating | IPX4 |
| Manufacturer Part Code | OSEF-ACF200 |
| Wattage | 110W |
| Width | 386mm |
| Ducting Size | 200mm |
