Hikmicro

Handheld Thermography Camera, 8MP, 192 x 144, -20°C to 550°C, IP54, M Series

Hikmicro

Handheld Thermography Camera, 8MP, 192 x 144, -20°C to 550°C, IP54, M Series

Part Code: HM-TP21S-7QF/W-M11

Stock Availability
Product Details
Part Code: HM-TP21S-7QF/W-M11
  • High sensitivity thermal module with 192 × 144 resolution
  • Supports multiple palettes
  • High quality optical module with 8MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • Wide temperature measurement range: -20°C - 550°C
  • High temperature measurement accuracy: Max. (± 2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
  • 640 x 480 resolution 3.5'' LCD touch display
  • Long-distance laser light supplement for thermography targets
  • 1.0x to 8.0x continuous digital zoom
  • Supports remote album access, download and quick report with APP

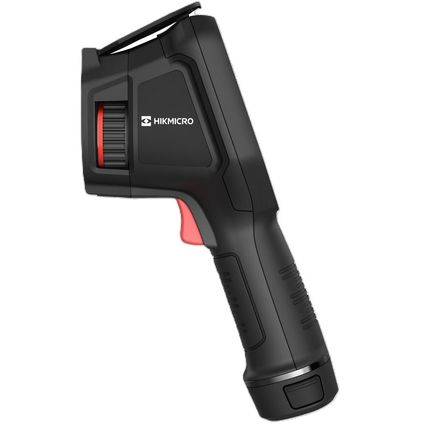

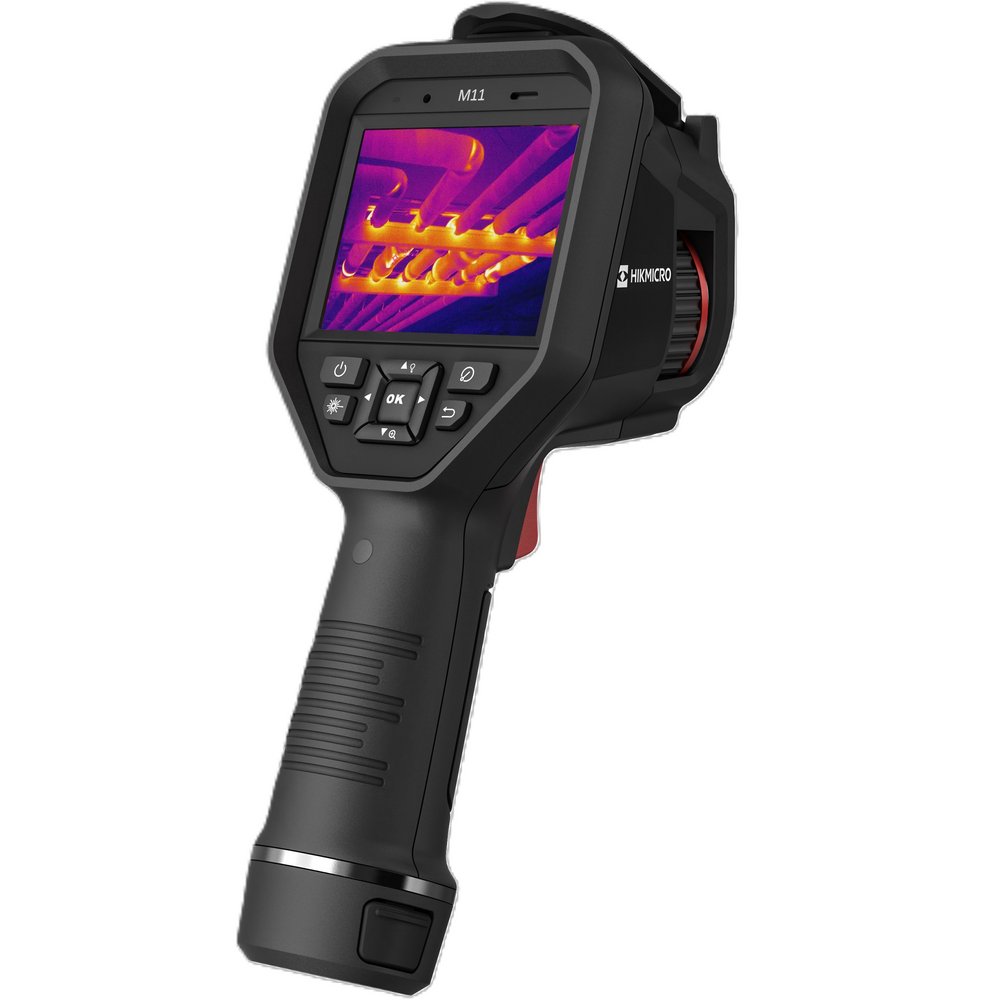

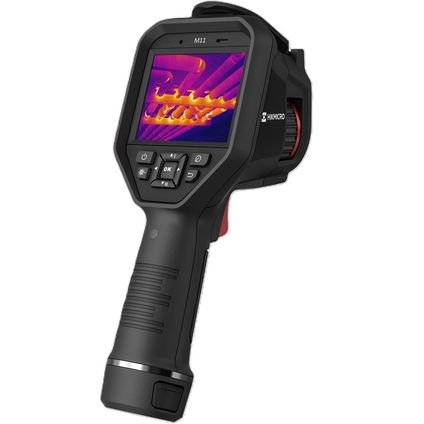

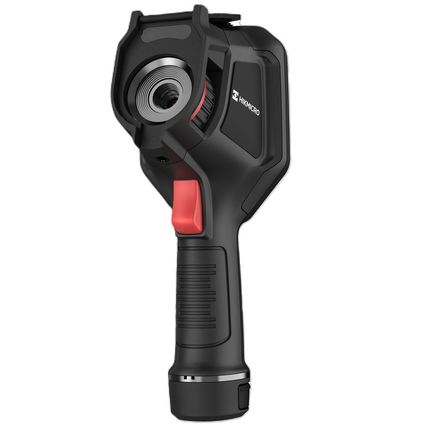

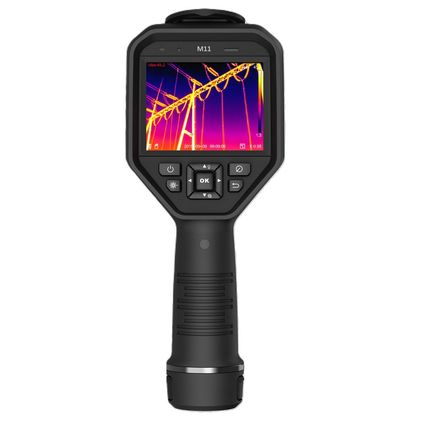

Handheld thermography camera is specially designed for professional inspections. It’s equipped with a 192 x 144 resolution thermal detector and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M11 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

Specifications
Depth 104mm
Height 244mm
IP Rating IP54
Manufacturer Part Code HM-TP21S-7QF/W-M11
Width 100mm
