Tigo

Cloud Connect Advanced (CCA) Kit

Tigo

Cloud Connect Advanced (CCA) Kit

Part Code: CCA KIT

Stock Availability
Product Details
Part Code: CCA KIT
  • Enables module-level monitoring through the Tigo cloud platform
  • Pairs with the Tigo Access Point (TAP) to enable compliance with NEC 2017, 2020, and 2023 690.12
    rapid shutdown requirements
  • Collects data from up to 900 TS4s via up to seven TAPs
  • Connects to wired and wireless networks
  • Includes a multifunction LED status indicator
  • Reads data from a wide range of 3rd party devices including Modbus-equipped inverters, charge controllers, weather stations, and revenue grade meters

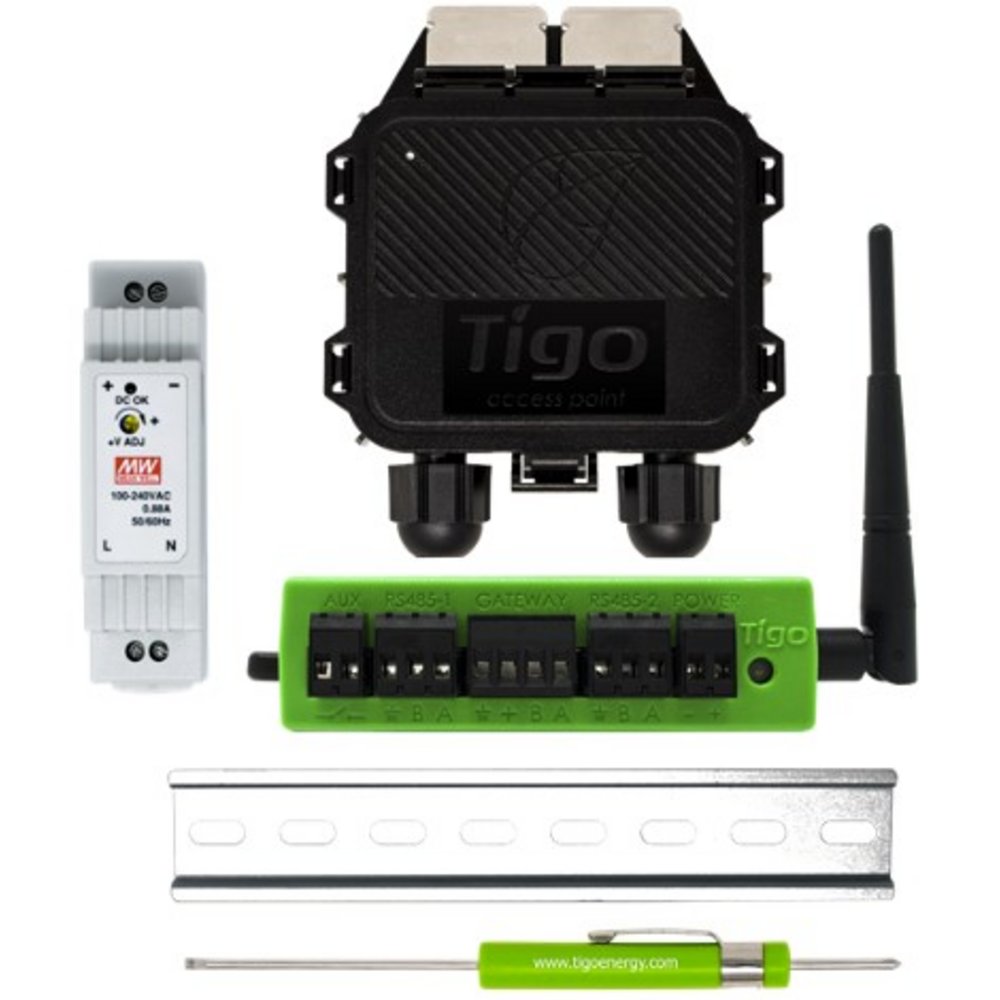

  • Includes: CCA, TAP and DIN Rail Power Supply

One of the smallest solar data loggers on the planet, Tigo's Cloud Connect Advanced (CCA) enables valuable insight into module level performance data. It is the hub for data from Tigo's O, S and M products and customers can also connect their inverters, batteries, building meters, and more. Current and historical data from the CCA can be viewed in the Tigo Energy Intelligence platform. The CCA is available as an add on kit, or integrated with inverters. It is supported by all major string inverter and module manufacturers worldwide.

Specifications
Accessory Type Data Logger
Manufacturer Part Code CCA KIT
