Product Details
Part Code:
EVAUTCS4GSEV
- Fully compliant with the Electric Vehicles (Smart Charge Point) Regulations 2021
- PME fault detection incorporated on single and three-phase
- 11kw/22kW single socket output with 4G connectivity
- Three-phase connection
- OCPP 1.6 compliant
- Smart App or Cloud management software
- Dynamic load balancing and Static load management capabilities
- OZEV approved
- 3 year warranty

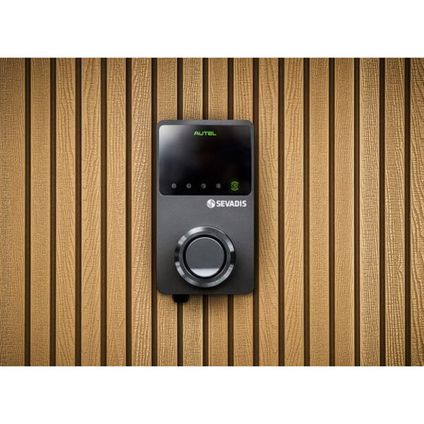

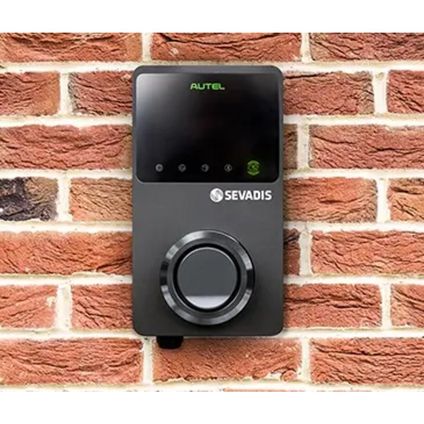

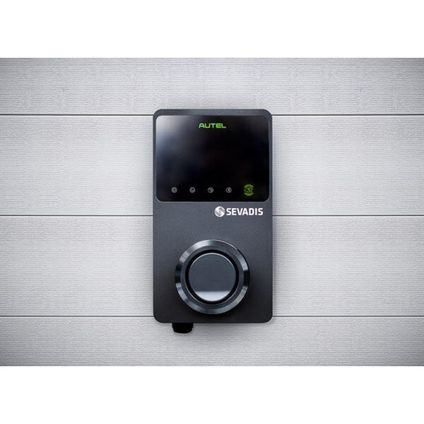

The MaxiCharger is a smart wall-mounted single-outlet, universal Type 2 socket EV charger. It is OCPP 1.6 compliant and has built-in PME fault detection on single and three-phase connections and both static load management and dynamic load balancing capabilities.
It is available in three attractive finishes: silver, black or white. The MaxiCharger is robust, aesthetically pleasing and suitable for all environments. It charges up to 7.4 kW on a single-phase connection and 11 kW/22 kW on a three-phase connection.
Downloads
Specifications
Colour | Black |
Connector Type | Type 2 |
Current Rating | 32A |
Depth | 85mm |
EAN | 6937357212722 |
Height | 336mm |
IP Rating | IP54 |
Manufacturer Part Code | EVAUTCS4GSEV |
Number of Outlets | 1 Outlet |
Width | 187mm |
KW Rating | 22kW |
