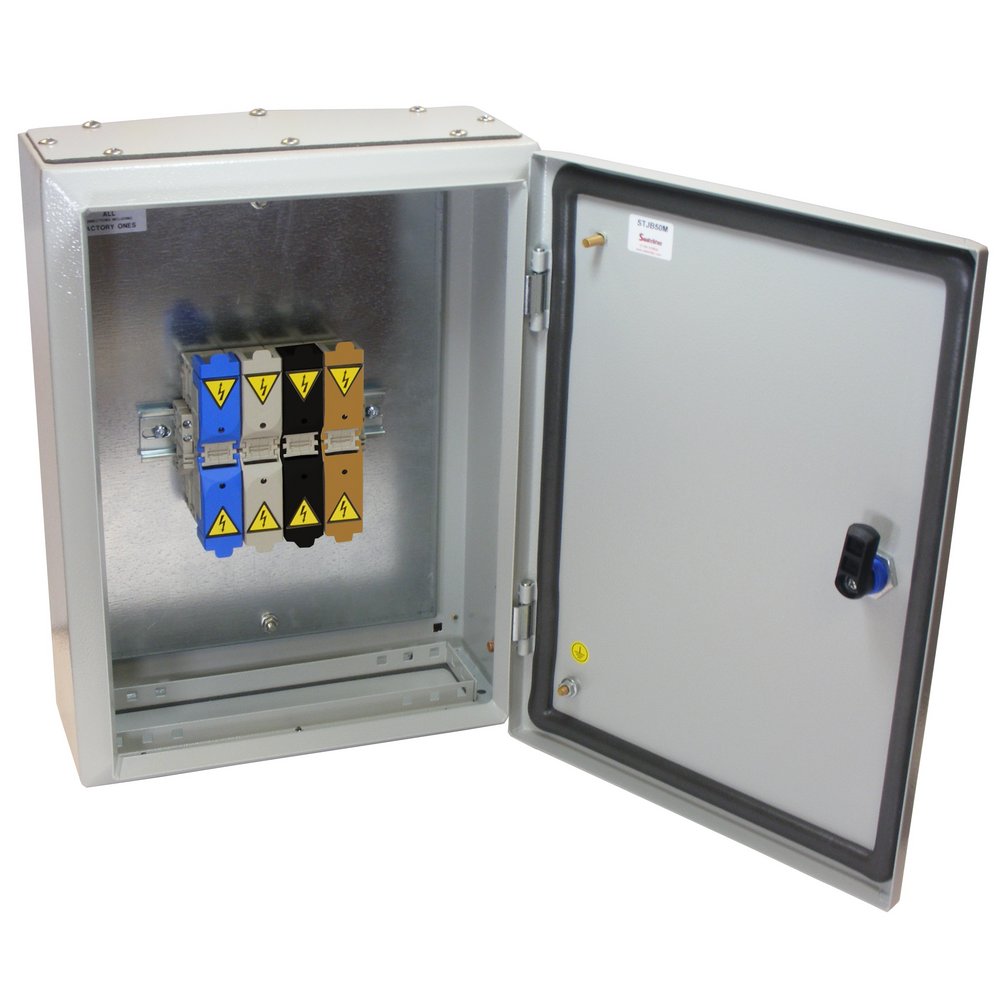

192A Metal Enclosed Stud Terminal, 4 Pole, M8, 80mm², 500mm x 400mm x 200mm, IP65
192A Metal Enclosed Stud Terminal, 4 Pole, M8, 80mm², 500mm x 400mm x 200mm, IP65
Part Code:
STJB70M
Stock Availability
Product Details
Part Code:
STJB70M
- 4 Pole enclosed stud terminals
- Cable size 50, 95, 150 & 240mm²
- IP65 RAL7035 weatherproof enclosure
- Enclosure has removable top & bottom gland plates.
- Supplied with phase colour coded covers
- Conforms to EN6947-7-1, UKCA & CE Approved
Specifications
| Current Rating | 192A |
| Depth | 200mm |
| Height | 500mm |
| IP Rating | IP65 |
| Manufacturer Part Code | STJB70M |
| Number of Poles | 4 Pole |
| Width | 400mm |
