Timeguard

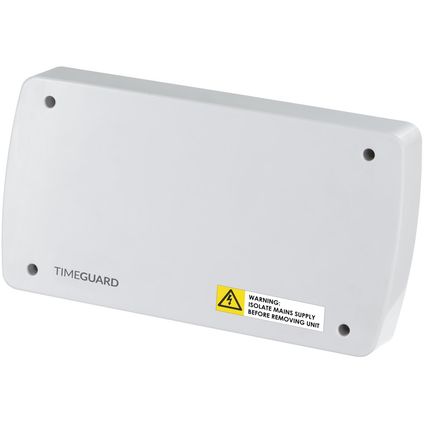

10A Wiring Centre Box, 16 Terminal Block Circuits and 4 Earth Terminals

Timeguard

10A Wiring Centre Box, 16 Terminal Block Circuits and 4 Earth Terminals

Part Code: TRT049N

Stock Availability
Product Details
Part Code: TRT049N
  • Spacious and robust box with easily accessible terminals
  • Suitable for all types of heating systems
  • Multiple fixing holes and cable entry knock outs
  • Supplied with wiring diagrams for S type and Y type plan installations

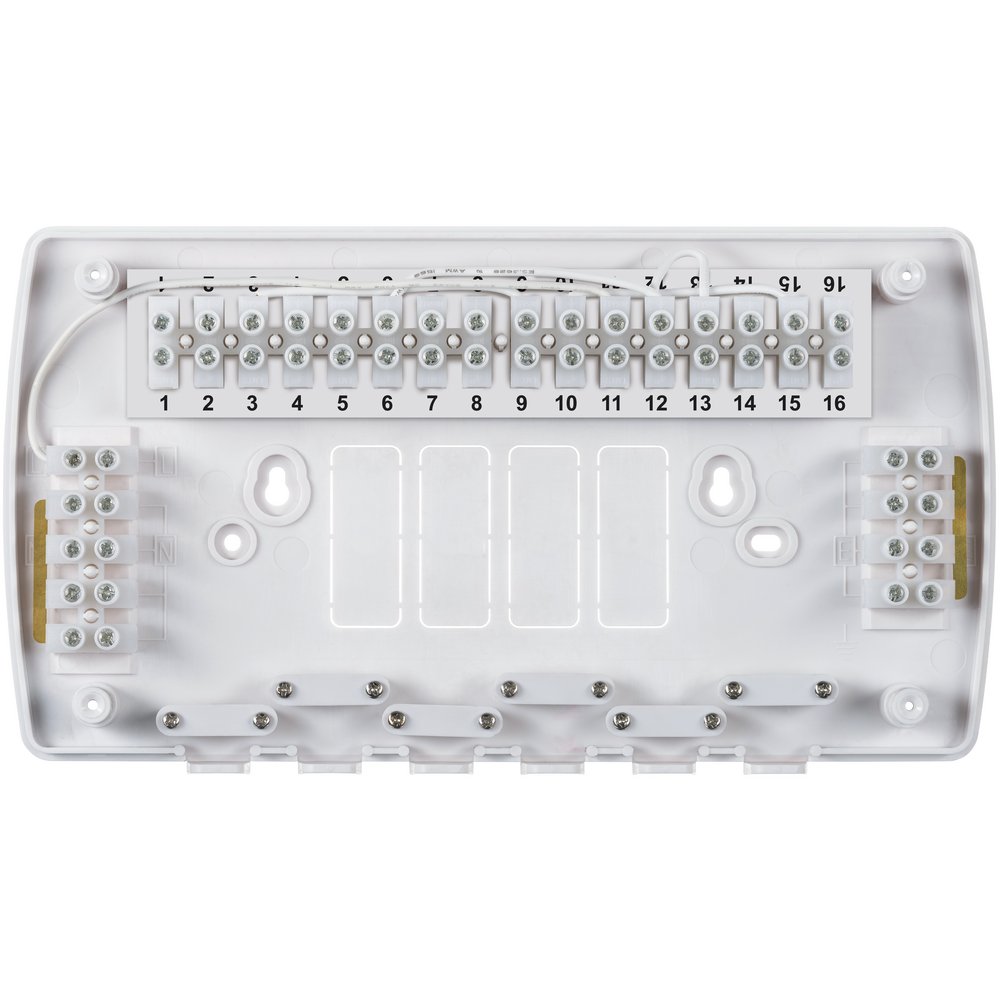

  • 16 terminal block circuits and 4 earth terminals
  • 6 Internal cable clamps
  • Installation Type: Surface mount with wall fixing kit supplied
  • Voltage: 230V 50Hz
  • Flame Retardant Rating: V1
  • Switch Rating: 10(2)A

Using a wiring centre box is a safe and convenient way of wiring all connections to and from a heating system, making system testing a clean and simple task. Supplied with wiring diagrams for ‘S’ Plan and ‘Y’ Plan installations.

Specifications
Current Rating 10A
Depth 30mm
Height 90mm
Manufacturer Part Code TRT049N
Width 135mm
